TIGER Electric Mountain Bike – 2025 DIY Conversion Bundle (1000W + 48V Battery)

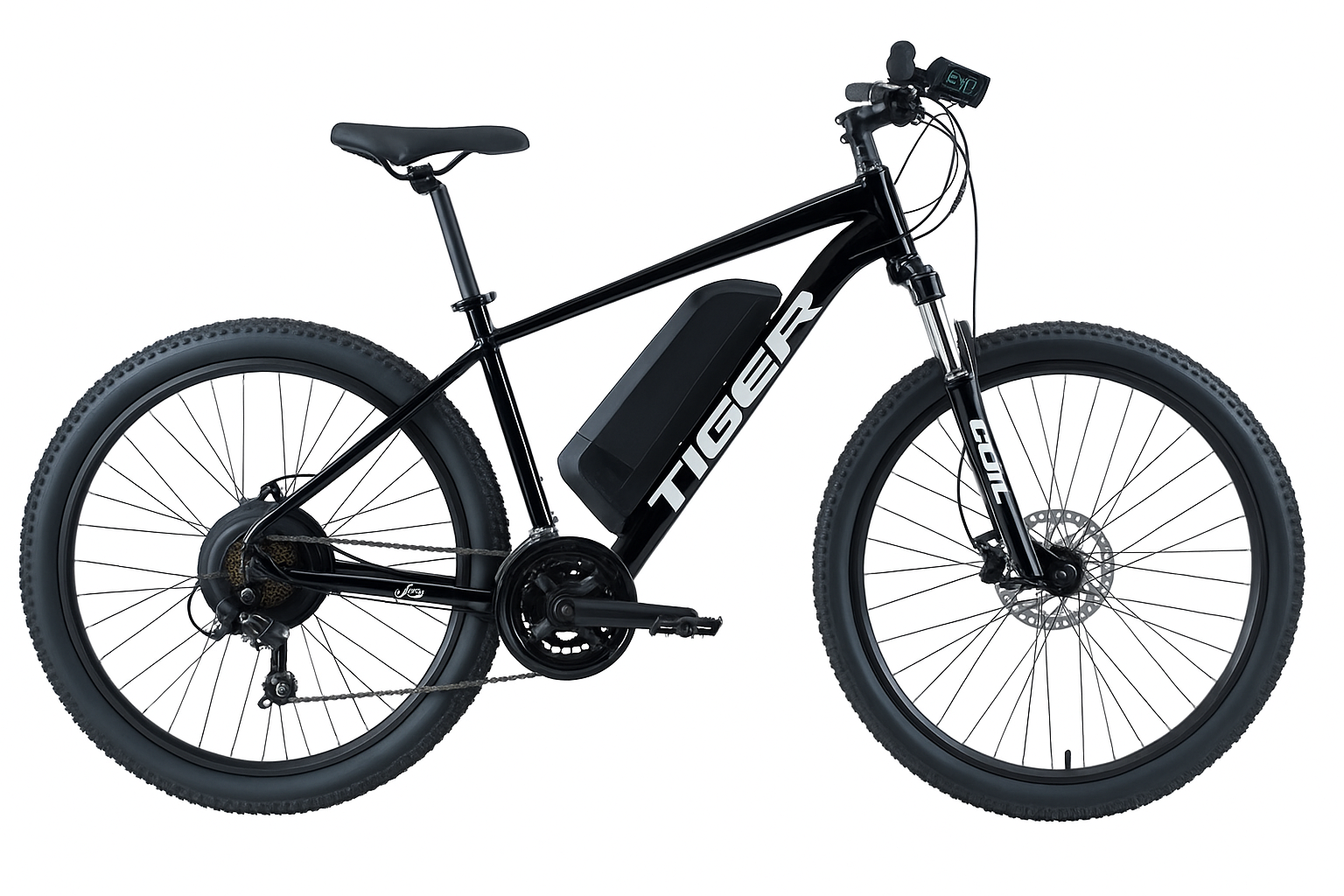

Shown fully converted for reference.

Built on the strong 2025/26 TIGER Alloy Hardtail platform and powered by a high-performance 1000W rear hub motor with a 48V lithium battery, this setup delivers smooth assistance, fast acceleration, and a modern MTB riding experience. The photos show the TIGER after conversion - clean, powerful, and ready for any terrain, with the motor integrated into the rear wheel and the battery sitting neatly in the triangle area for balance and stability.

The TIGER’s lightweight 6061 aluminium frame, paired with a responsive Zoom 565AMS suspension fork and Shimano 21-speed gear system, provides confident handling both on the streets and on rough tracks. The electric system adds instant torque, multiple pedal-assist levels, LCD control, and a reliable brushless gearless motor designed for long-term durability.

This combination gives you everything needed to turn a premium MTB into a fast, powerful electric bike with performance far beyond standard entry-level factory e-bikes.

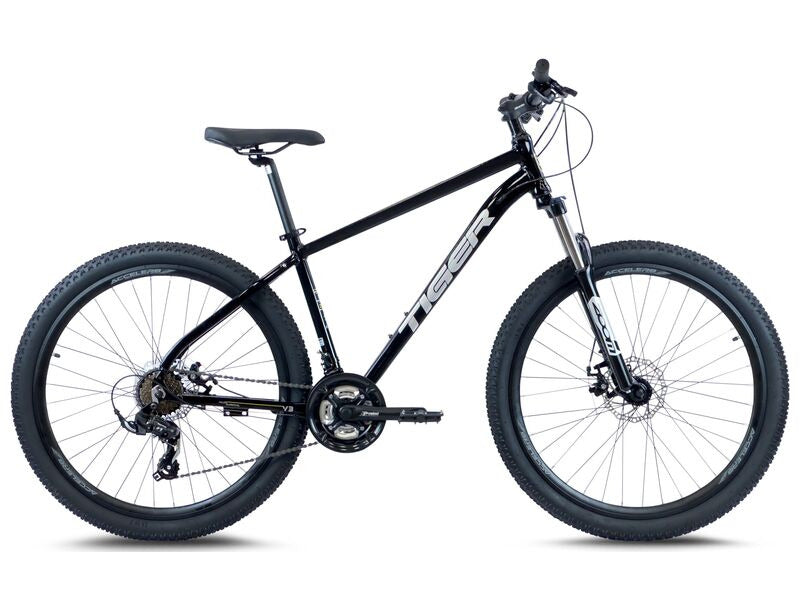

🚲 TIGER Hardtail MTB – Technical Specification

Frame: 6061 Alloy Hardtail with internal cable routing
Fork: Zoom 565AMS, 100mm travel, lock-out
Rear Derailleur: Shimano TY-300
Front Derailleur: Shimano TZ-500
Shifters: Shimano M315 Rapidfire, 21-speed
Chainset: Prowheel 42/34/24T, 170mm alloy crank
Bottom Bracket: Sealed cartridge
Freewheel: Shimano TZ-500 14-28T, 7-speed
Brakes: Mechanical disc brakes, 160mm rotors
Handlebars: Acceler8 Alloy, 740mm width, 15mm rise
Stem: Zoom Alloy A-head, 40mm extension, 7° rise
Wheel Size: 27.5” twin-wall alloy rims (sealed bearing hubs)
Gearing: 3 × 21
Colour: Gloss Black

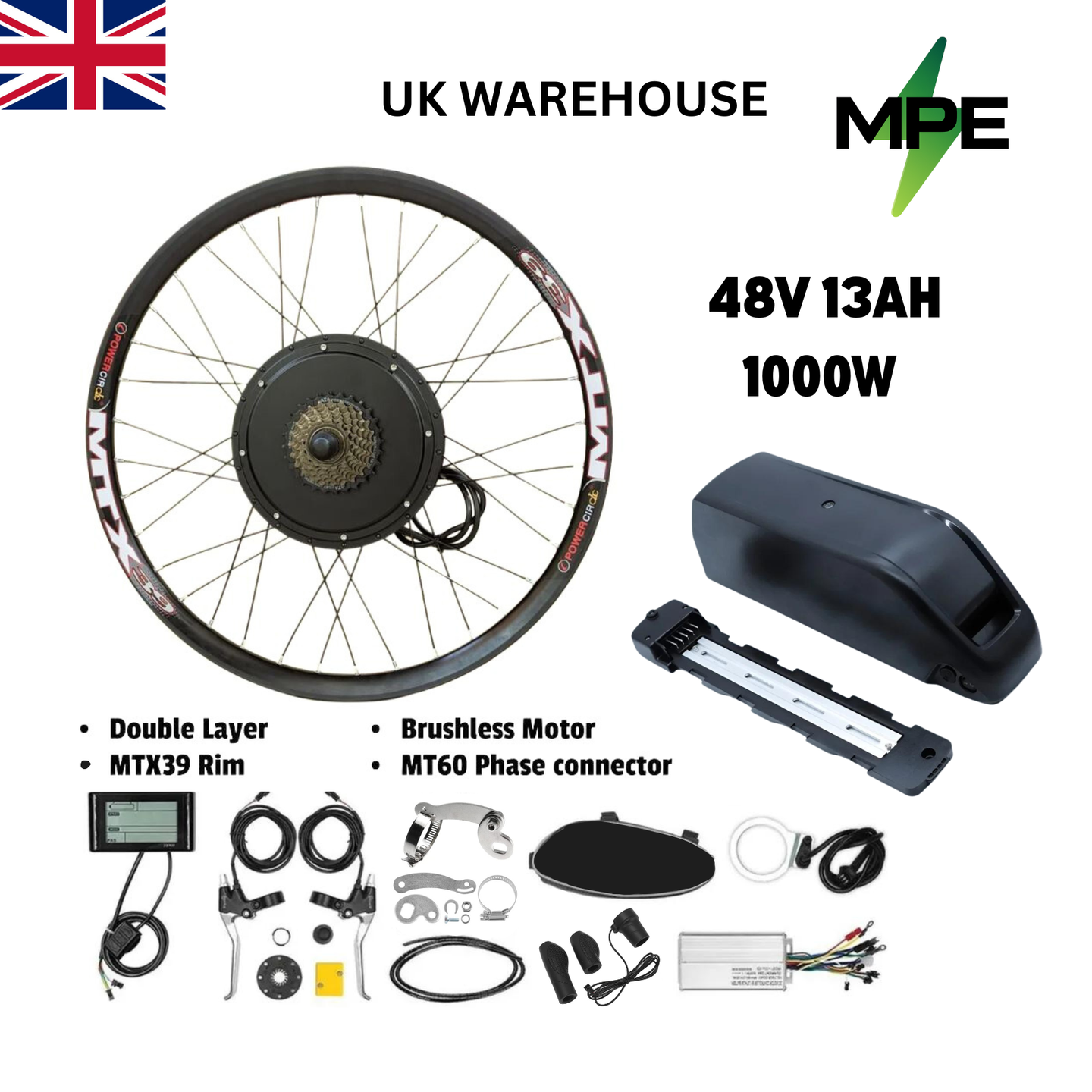

⚡ 1000W Rear Hub Motor Conversion Kit – Technical Specification

Motor Power: 1000W
Motor Type: Brushless gearless rear hub
Rim: Double-wall alloy
Torque: 45 Nm
Spokes: Steel 12G (2.6mm)
Max Speed: 30–35 mph
Pedal Assist Modes: 5 levels
Range: 20–40 miles (depending on assist mode & terrain)
Wheel Options: 26” / 27.5” / 29”
Wheel Axle: 175 × Φ10mm
Max Load Capacity: 440 lbs (200 kg)
Kit Weight: 10.5 kg

Includes:

• 1 × 1000W rear motor wheel

• 1 × Intelligent motor controller

• 1 × LCD display

• 1 × Twist throttle (with grips)

• 1 × Pair of brake levers

• 1 × PAS sensor

• 1 × Controller bag

• Cable ties, protective coil & manual

🔋 48V 13Ah Lithium Battery (Included)

Voltage: 48V
Capacity: 13Ah
Rated Power: 1000W
Dimensions: 370 × 90 × 113 mm
Charger: Included
Notes: Battery ships separately due to transport regulations

📦 Delivery

• UK Stock: 2–4 working days delivery

• Motor and battery ship separately for safety compliance

• Express delivery available on request

🔧 Assembly

The images display the fully converted TIGER for reference.
Your order includes the brand-new TIGER bike (boxed), the full 1000W conversion kit, and the 48V battery, allowing you to build the electric version at home.

A full video guide can be provided if needed.
